Rotary Joint

Home - Products

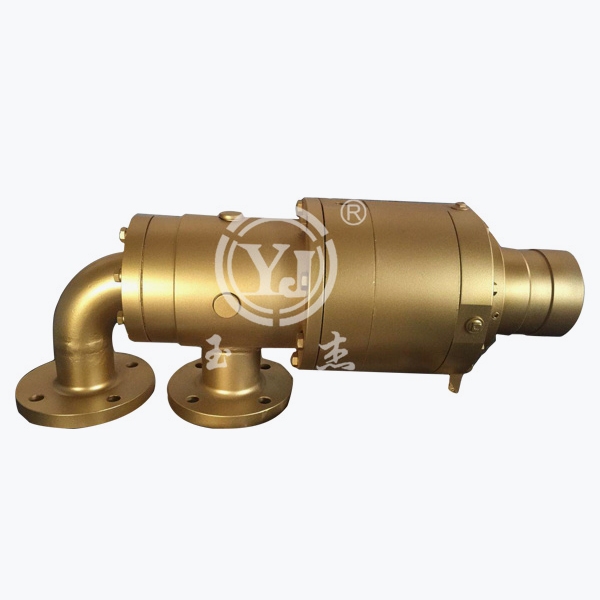

PS020 Rotary Joint for textile industry

Model：PS020
Outer pipe：
Feature：Adopt two - level plane seal form; The cooling cycle inside the joint can be realized; Long service life under high temperature condition; It can realize synchronous operation of inner tube and outer tube; Seal reliability; High efficiency; Applicable to non - woven fabric industry.

Technical Parameter：
Media oil
Max.Temperature ≤300℃
Max.Pressure ≤1.0Mpa
Max.Speed ≤650rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

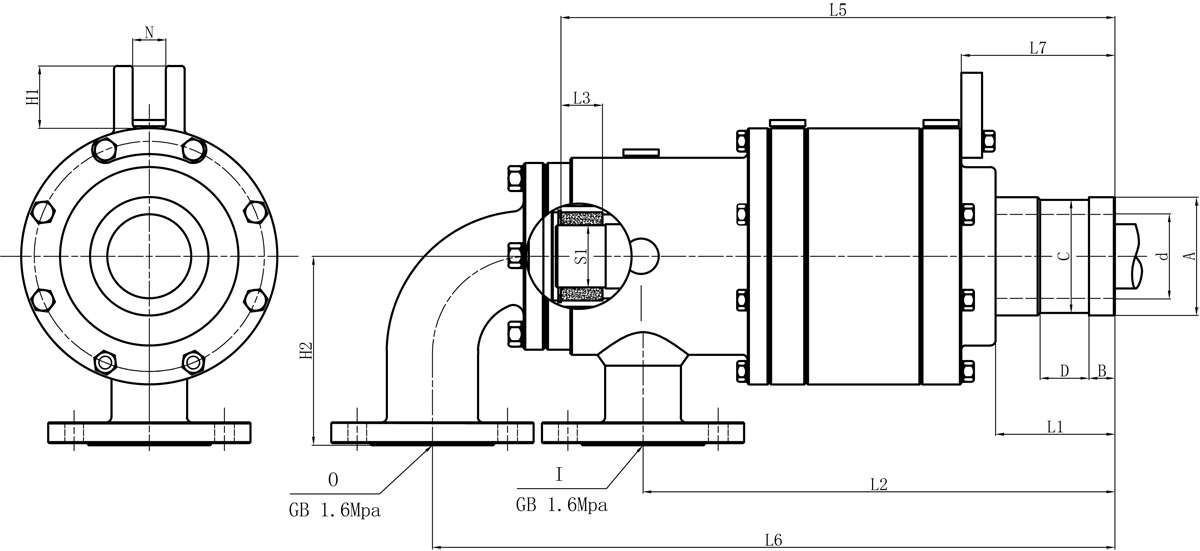

Model I O S1 d L1 L2 L3 L5 L6 L7 N H1 H2 Flange outer tube size control table
A B C D
100A DN65 DN65 58 81 115 455 40 534 658 148 32 60 182 114 25 109 35
125A DN80 DN80 75 98 126 500 50 599 732 158 32 55 195 135 25 130 35
We offer customized products if special sizes.
Specifications are subject to change without notice.
